Manual Inbox Review
- Each email opened and interpreted individually
- Category and priority decided manually
- Urgent cases may depend on visual recognition
- Initial reply drafts prepared repeatedly
SIM-02 · Validated Automation Simulation
AI Support Email Triage and Urgent Ticket Automation
See how AutomateSuite validated an AI-assisted workflow that classifies incoming support emails, applies category and priority rules, prepares review drafts and escalates urgent cases to HubSpot.
Validated Simulation, Not a Customer Performance Claim
This case study documents a controlled AutomateSuite test. It demonstrates validated workflow behaviour and connected-system actions, but it is not presented as a customer deployment, production-scale benchmark or guaranteed AI-accuracy result.
Business Challenge
Support Teams Need to Identify Priority and Context Quickly
When every incoming email is reviewed manually, urgent requests may remain mixed with normal enquiries, categories may be applied inconsistently and agents may spend time preparing repetitive first responses.
Structured AI-Assisted Routing
- Category and priority returned in a structured format
- Gmail labels applied according to the result
- Manual-review cases receive a suggested-reply draft
- Configured urgent cases create a HubSpot ticket
Automation Objective
Classify, Record and Escalate Support Requests Consistently
The simulation was designed to monitor incoming Gmail messages, send the message content to an AI classification step, store the structured result in Airtable, apply Gmail labels and create review drafts or HubSpot tickets when the configured conditions were met.
Workflow Overview

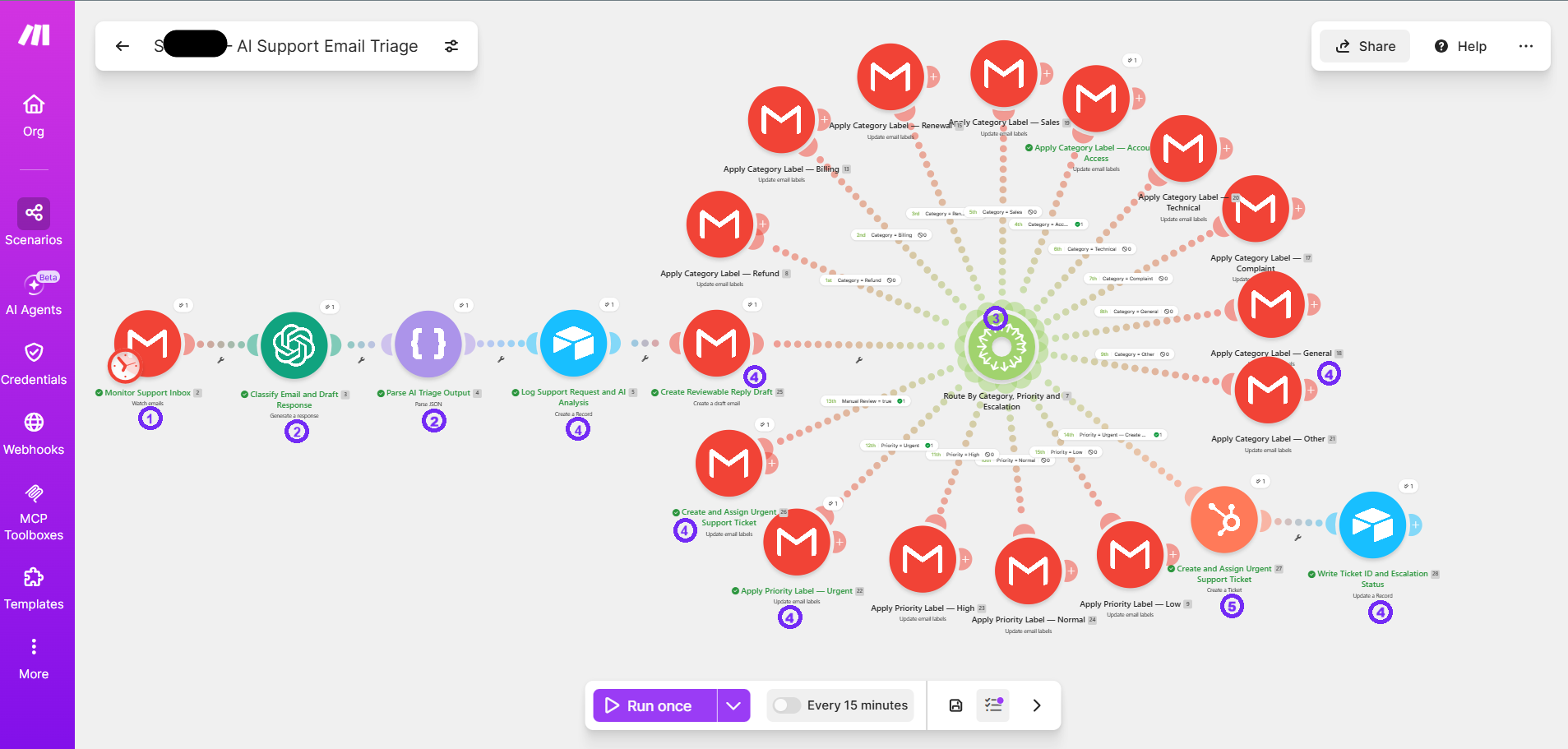

How the AI Support Triage Workflow Operates
The scenario combines Gmail monitoring, AI classification, category routing, Airtable documentation, manual review and conditional HubSpot escalation.
All screenshots on this page can be enlarged. Click any image to open it, then press Esc, click outside the image or use the × button to close it.
-
1
Incoming email trigger
New support emails are detected in Gmail.
-
2
AI classification
The subject, sender and body are analyzed to return category, priority, confidence and review fields.
-
3
Category routing
The structured result selects the relevant configured route, such as Account Access, Billing, Technical, Sales, Refund or General.
-
4
Documentation and Gmail actions
Airtable stores classification and escalation results, while Gmail receives category, priority and review actions.
-
5
Urgent escalation
Configured urgent manual-review cases create a HubSpot ticket and assign an available owner.
01
Incoming Request

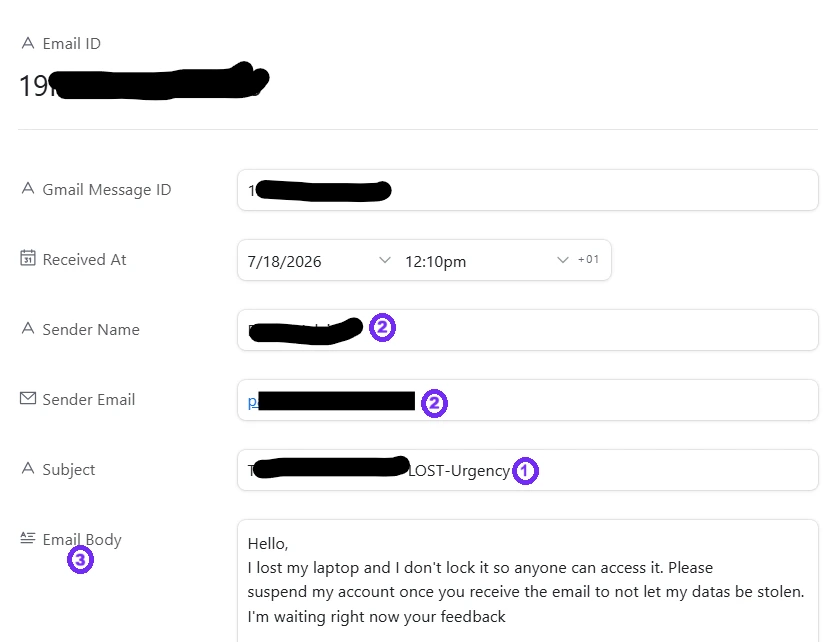

A Support Email Enters Gmail
The workflow receives the email subject, sender and message body so the request can be classified using the configured AI prompt.
-
1
Email subject
The subject provides an initial signal about the customer’s request.
-
2
Sender information
The sender is preserved in the support record for follow-up.
-
3
Message context
The email body supplies the context required for classification and suggested-response generation.
02
Structured Classification

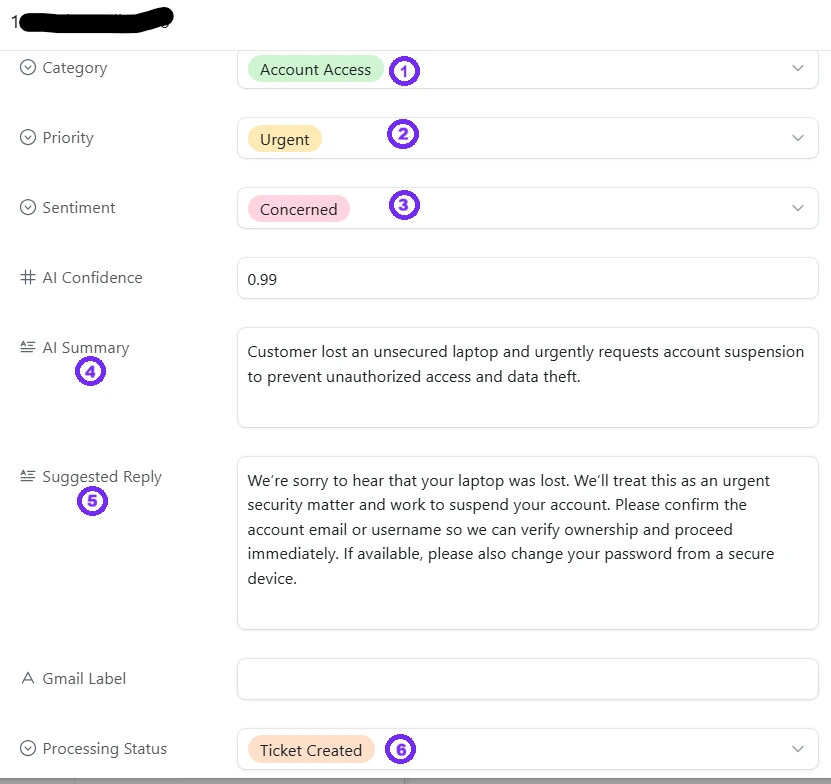

The AI Result Is Recorded in Airtable
The workflow records the selected category, priority, confidence, suggested reply and manual-review requirement so the processing outcome remains visible.
-
1
Support category
The message is assigned to the configured support category.
-
2
Priority result
The record distinguishes an urgent request from a normal request.
-
3
Sentiment result
The AI identifies the customer’s tone as concerned.
-
4
AI summary
The workflow stores a concise summary of the customer’s issue and requested action.
-
5
Suggested reply
The generated reply is stored for human review before any response is sent.
-
6
Processing status
The final status confirms that the urgent request continued through the ticket-creation route.
03
Human Review

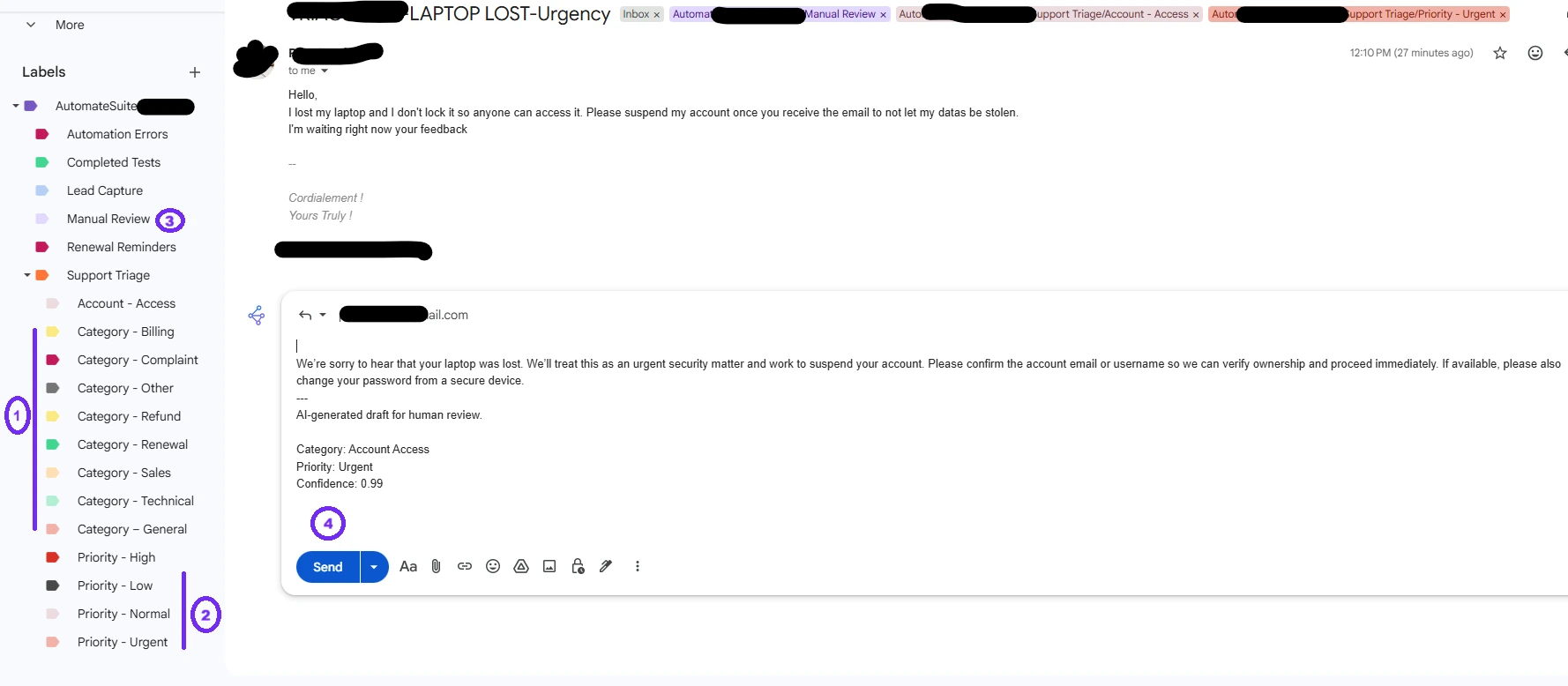

Gmail Receives Labels and a Suggested-Reply Draft
The email is organized with category and priority labels. When review is required, the workflow prepares a Gmail draft rather than sending the response automatically.
-
1
Category label
The email is placed under the category returned by the workflow.
-
2
Priority label
The priority result remains visible directly inside Gmail.
-
3
Manual-review label
The label signals that the proposed reply requires human verification.
-
4
Draft, not automatic sending
The suggested response remains editable and is not sent automatically.
04
Escalation Recorded

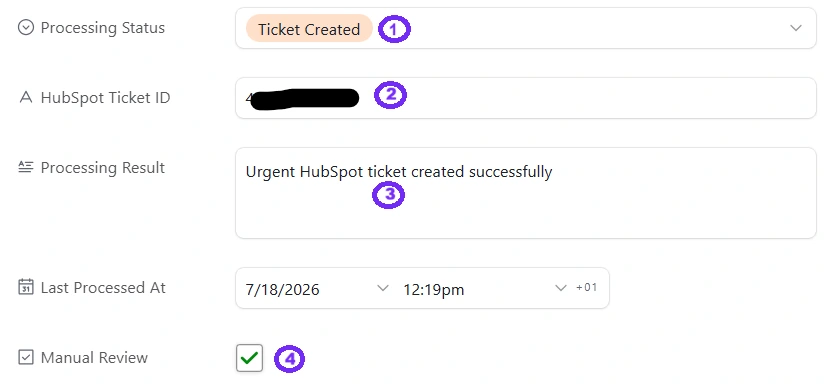

Airtable Records the Urgent Ticket Result
After the urgent escalation branch runs, Airtable stores the ticket status, HubSpot reference, processing result and manual-review state.
-
1
Ticket-created status
The processing status confirms that the urgent escalation branch completed.
-
2
HubSpot ticket reference
Airtable stores the identifier of the HubSpot ticket created by the workflow.
-
3
Successful processing result
The result confirms that the urgent HubSpot ticket was created successfully.
-
4
Manual review preserved
The record remains marked for human review despite the automated escalation.
Urgent Escalation

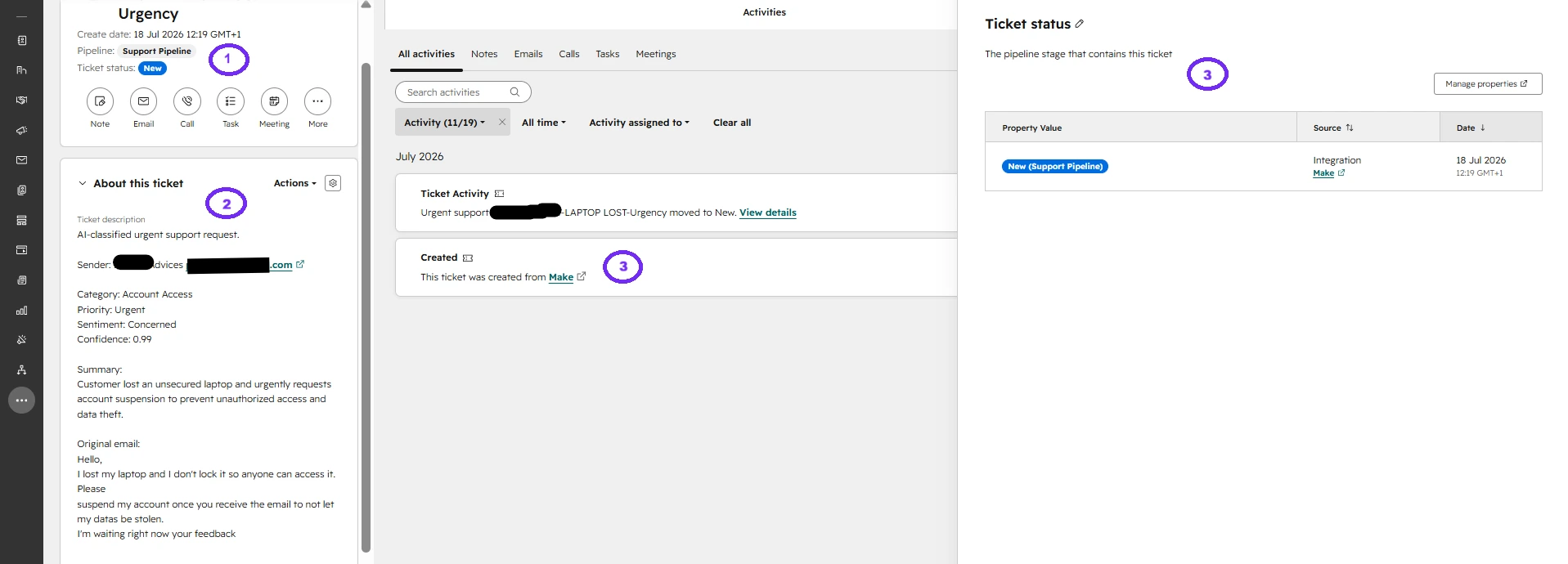

Configured Urgent Cases Create a HubSpot Ticket
When the manual-review and urgent-priority conditions match the configured escalation rule, the workflow creates a HubSpot ticket and associates an available ticket owner.
-
1
Ticket created
The urgent support case becomes a trackable HubSpot ticket.
-
2
Support context preserved
The ticket preserves the sender, category, priority, sentiment, summary and original email context needed for follow-up.
-
3
Ticket status and automation source
HubSpot records the ticket as New in the Support Pipeline and identifies Make as the source of creation.
Alternative Processing Path

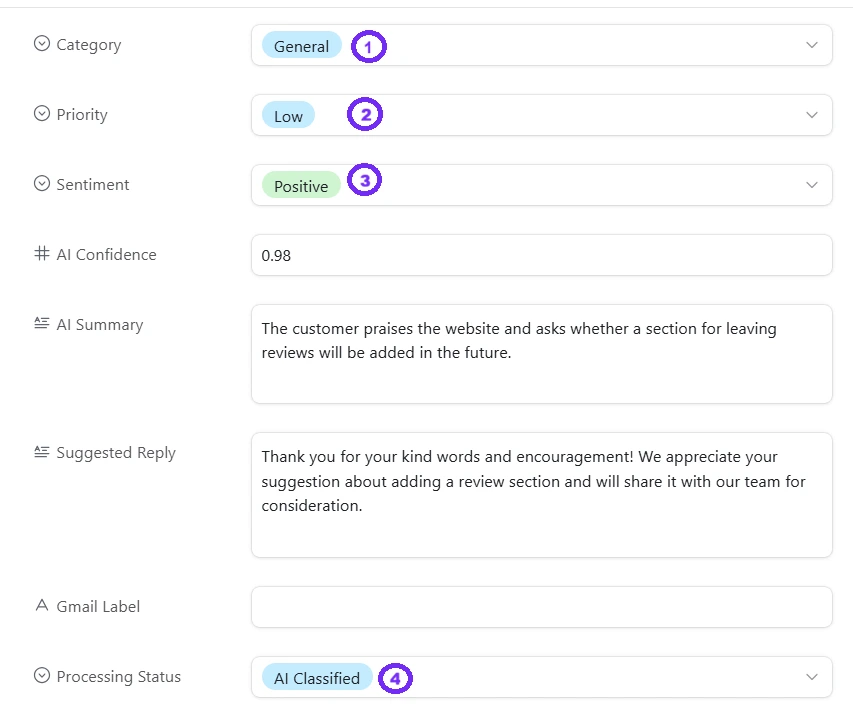

Normal Requests Follow a Different Route
The simulation also tested a non-urgent informational email. The AI result classified it as a general, low-priority and positive request rather than sending it through the urgent-ticket route.
-
1
General category
The informational message is classified separately from account-access, billing or technical cases.
-
2
Low priority
The workflow distinguishes the normal enquiry from the urgent security request.
-
3
Positive sentiment
The structured result records the positive tone of the customer’s message.
-
4
AI-classified status
The message completes the normal classification path without creating an urgent HubSpot ticket.
Validated Test Results
What the Simulation Demonstrated
The following behaviours were observed during the controlled AutomateSuite test.
Emails Detected
The scenario received the prepared Gmail support messages.
Structured AI Output
The classification step returned the mapped category, priority and review fields.
Gmail Actions Applied
Category, priority and review actions were applied to the tested emails.
Urgent Ticket Created
The configured urgent case created a HubSpot ticket with an owner.
What This Case Study Does Not Claim
The simulation does not claim guaranteed AI accuracy, fully autonomous customer communication, production-scale processing volume, customer return on investment or identical results for every implementation.
Operational Benefits
A More Structured Support-Request Workflow
Consistent Classification
Messages are evaluated according to a common category and priority structure.
Clearer Urgent Routing
Configured urgent cases can be separated from normal enquiries and escalated.
Human Review Preserved
Suggested replies remain editable drafts when human validation is required.
Centralized Processing Records
Airtable preserves the classification, suggested reply and review status.
Possible Production Configuration
Adapt the Workflow to Your Support Rules and Channels
A production implementation can be adjusted according to the client’s support categories, approval requirements, escalation policies, response templates and connected service platforms.
- Custom categories, priorities and escalation thresholds
- Additional email inboxes and support channels
- Alternative ticketing and CRM platforms
- Approval rules for AI-generated drafts
- Custom assignment, notification and audit requirements
Validated Technology Stack
Tools Used in This Simulation
The demonstrated workflow was built and tested with the following connected platforms.
Gmail
Receives support messages and stores labels and manual-review drafts.
OpenAI
Returns the structured category, priority, confidence, review and suggested-reply fields.
Airtable
Stores the original support message and the resulting classification data.
Make
Orchestrates email monitoring, AI processing, routing and connected actions.
HubSpot
Receives urgent cases as trackable support tickets with ownership.
The production stack can be adapted according to the client’s existing support systems and technical requirements.
Platform disclosure: this published simulation was built and tested in Make. n8n and Zapier were not tested as part of this case study and remain scope-dependent production options.
Frequently Asked Questions
AI Support Email Triage FAQ
Yes. Categories, priorities and escalation rules can be adapted to the client’s support structure and terminology.
Not in the demonstrated manual-review route. The workflow creates an editable Gmail draft so a human can verify and decide whether to send the response.
In the controlled test, the escalation branch required manual review, urgent priority and the configured account-access subject condition. Production rules can be adapted.
Potentially yes. A production configuration may connect to another compatible help-desk, CRM or database depending on its available integrations and API access.
No. AI output can require review, especially for ambiguous, sensitive or high-impact cases. Confidence fields, manual-review rules and fallback routes can help preserve human oversight.
