Manual Renewal Monitoring
- Expiration dates checked individually
- Reminder timing depends on manual follow-up
- Failed messages may require separate investigation
- Escalation status updated manually
SIM-03 · Validated Automation Simulation
WhatsApp Renewal Reminders with SMS Fallback and HubSpot Escalation
See how AutomateSuite validated a workflow that evaluates renewal dates, sends staged WhatsApp reminders, includes configured SMS fallback branches and records HubSpot escalation results.
Validated Simulation, Not a Customer Performance Claim
This case study documents a controlled AutomateSuite test. It demonstrates validated reminder and escalation behaviour and documents configured fallback branches, but it is not presented as a customer deployment, guaranteed delivery rate or production-scale result.
Business Challenge
Renewal Dates Can Be Missed Without Structured Follow-Up
When expiration dates and reminders are managed manually, customers may receive messages too late, delivery failures may remain unnoticed and unresolved cases may lack a clear escalation record.
Staged Reminder and Escalation Logic
- Renewal dates evaluated automatically
- Seven-day, three-day, one-day and expiration-day routes separated
- Fallback delivery available when required
- Processing and escalation outcomes recorded
Automation Objective
Send the Right Reminder at the Right Renewal Stage
The simulation was designed to identify eligible renewal records, mark them as processing, evaluate the remaining number of days, send the appropriate WhatsApp reminder and preserve delivery or escalation results in Airtable.

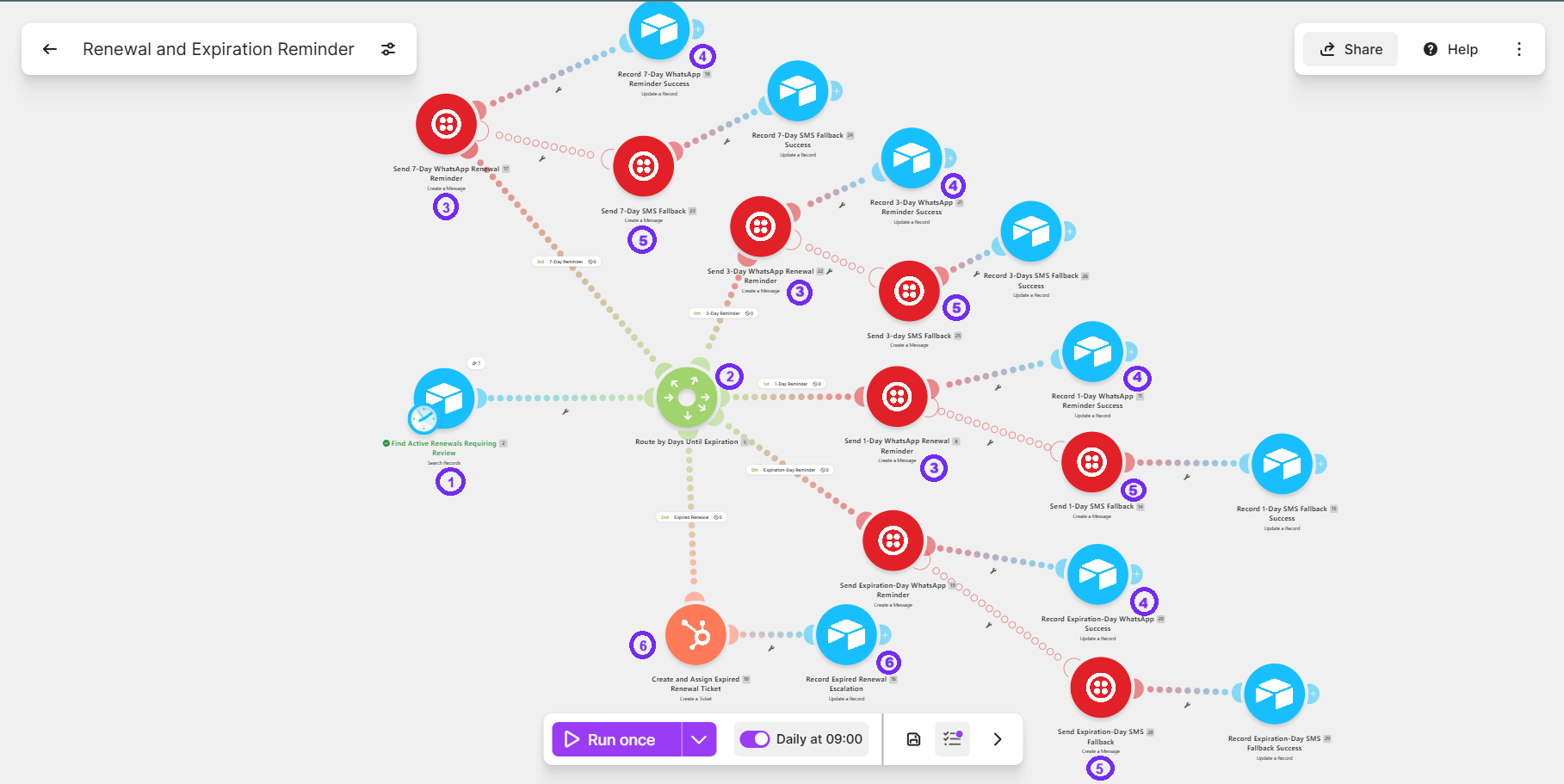

Workflow Overview
How the Renewal Reminder Workflow Operates
The scenario evaluates active renewal records, routes them according to the expiration stage and updates Airtable after each reminder, fallback or escalation action.
All screenshots on this page can be enlarged. Click any image to open it, then press Esc, click outside the image or use the × button to close it.
-
1
Renewal record monitoring
Eligible Airtable records are selected according to the expiration and status conditions.
-
2
Reminder-stage routing
The workflow separates seven-day, three-day, one-day and expiration-day conditions.
-
3
WhatsApp reminder delivery
The appropriate WhatsApp reminder is sent through the configured Twilio connection.
-
4
Airtable result recording
Airtable records the reminder stage, delivery channel and processing result.
-
5
SMS fallback delivery
Configured fallback branches send an SMS when the relevant delivery condition is met.
-
6
Expired-renewal escalation
An unresolved expired renewal creates a HubSpot ticket, and Airtable records the escalation result.

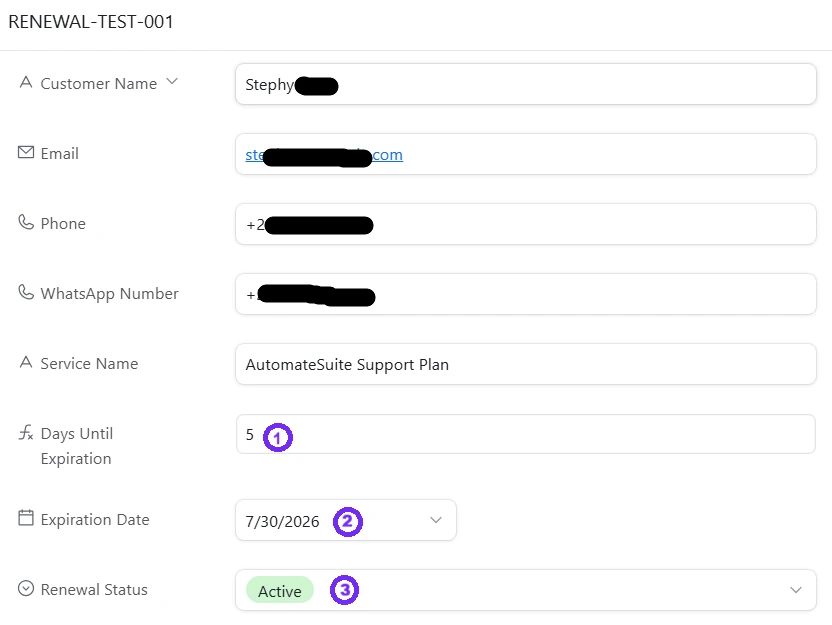

01
Renewal Evaluation
Airtable Calculates the Renewal Stage
The record contains the customer, expiration date, calculated remaining days and renewal status required by the routing logic.
-
1
Expiration date
The customer’s renewal deadline provides the reference date for the reminder logic.
-
2
Days until expiration
The calculated value determines which configured reminder or expiration route should run.
-
3
Renewal status
The status helps prevent records outside the eligible processing stage from being handled.

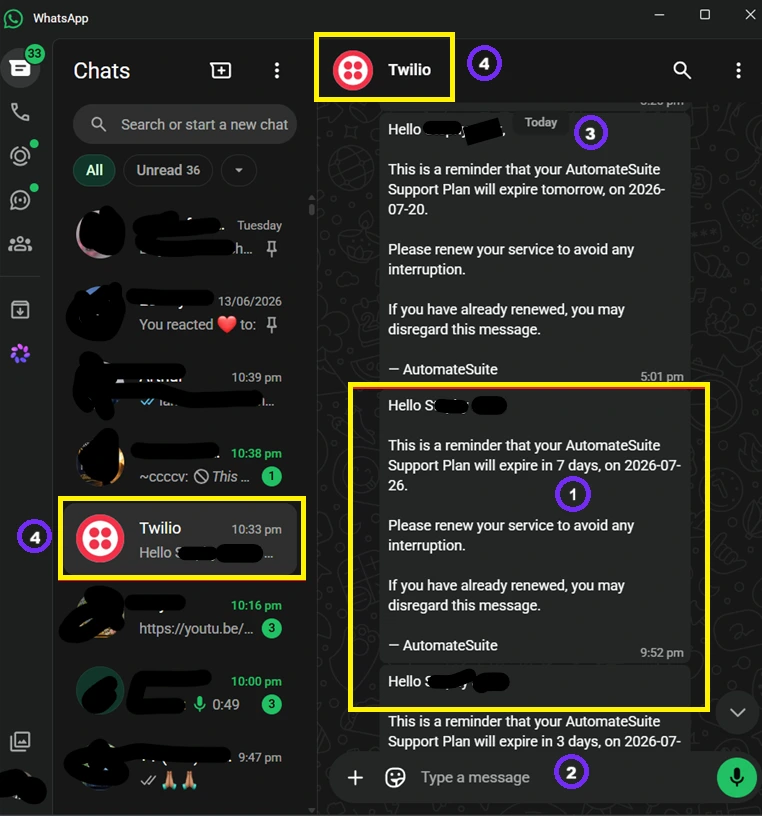

02
Staged WhatsApp Reminders
Customers Receive Reminders at Different Renewal Stages
The tested workflow uses separate routes for seven-day, three-day, one-day and expiration-day reminders, allowing the message to reflect the remaining time.
-
1
Seven-day reminder
An advance message informs the customer that the renewal date is approaching.
-
2
Three-day reminder
A second staged message reflects the shorter remaining renewal period.
-
3
One-day reminder
The final advance reminder informs the customer that expiration is expected the following day.
-
4
Twilio WhatsApp Sandbox
The controlled simulation used Twilio’s sandbox connection rather than a live approved production sender.
03

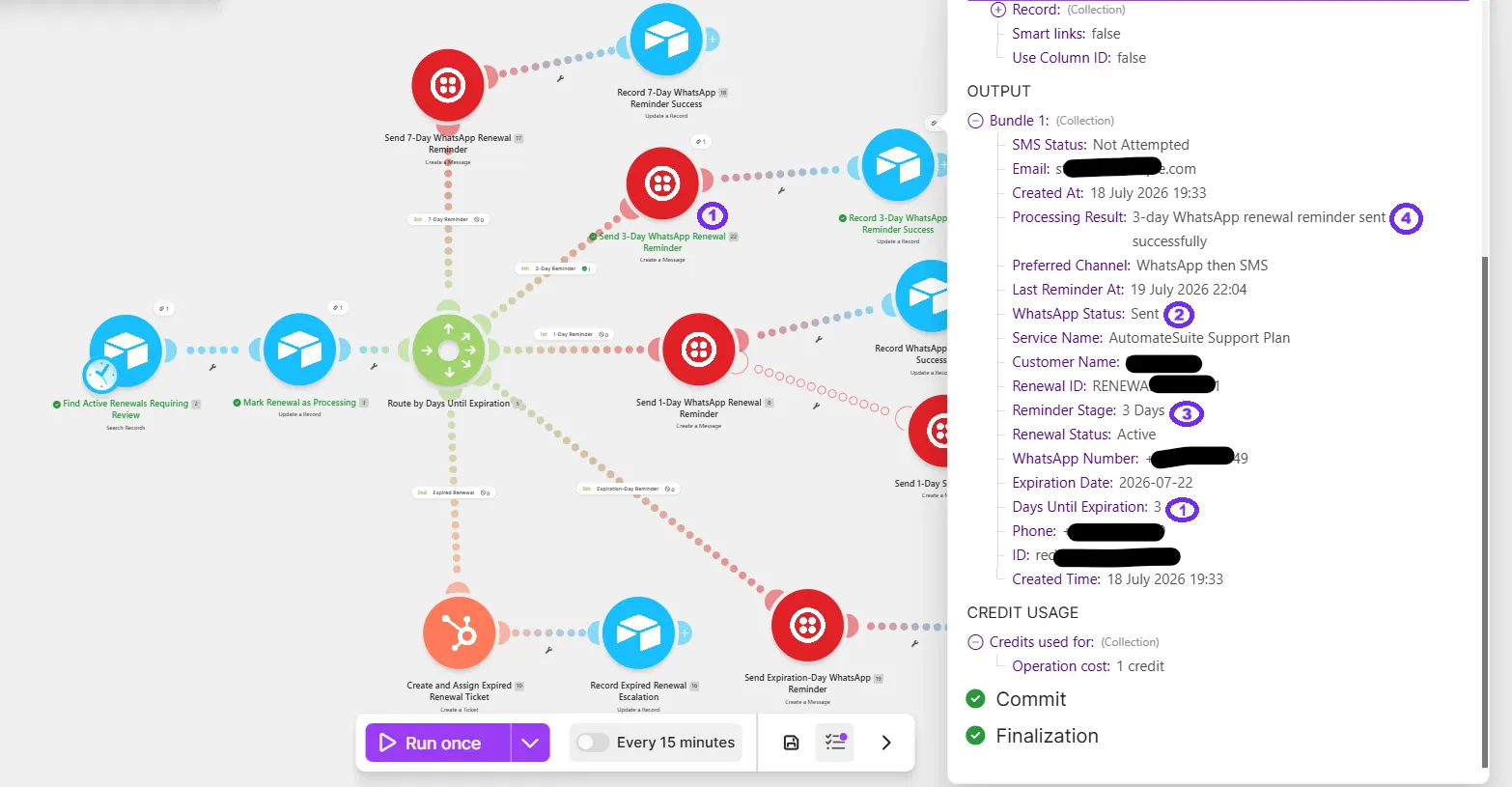

Three-Day Processing Result
Airtable Records the Successful Three-Day Reminder
After the three-day WhatsApp route completes, the workflow stores the selected channel, delivery status, reminder stage and processing result.
-
1
Three-day route selected
The workflow identifies the renewal record as having three days remaining.
-
2
WhatsApp status sent
The processing output records the WhatsApp delivery action as sent.
-
3
Reminder stage recorded
The Airtable update output records the reminder stage as three days.
-
4
Successful processing result
The output confirms that the three-day WhatsApp renewal reminder was sent successfully.
04

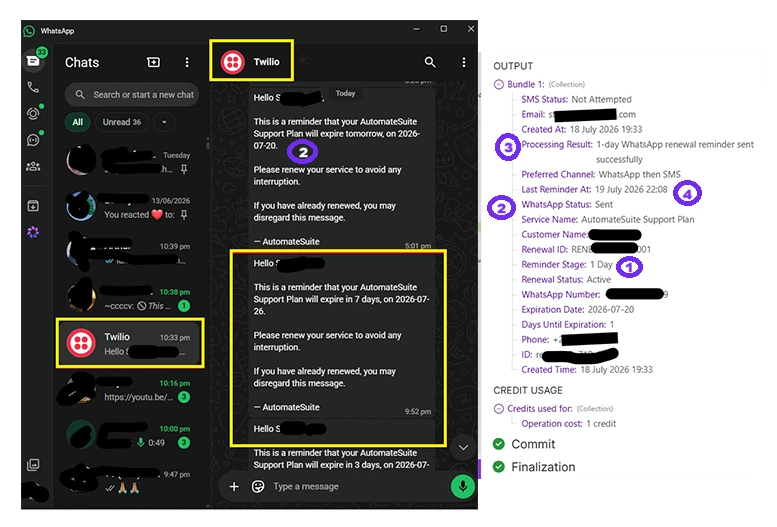

One-Day Processing Result
Airtable Records the One-Day Reminder Result
After the one-day route completes, the renewal record stores the reminder stage, channel result, processing message and latest action time.
-
1
Reminder stage
The output records that the one-day reminder route completed.
-
2
Channel status
The WhatsApp status and delivered message confirm that the reminder was sent.
-
3
Processing result
The processing result confirms successful completion of the one-day WhatsApp reminder.
-
4
Latest action time
The timestamp records when the latest reminder action completed.

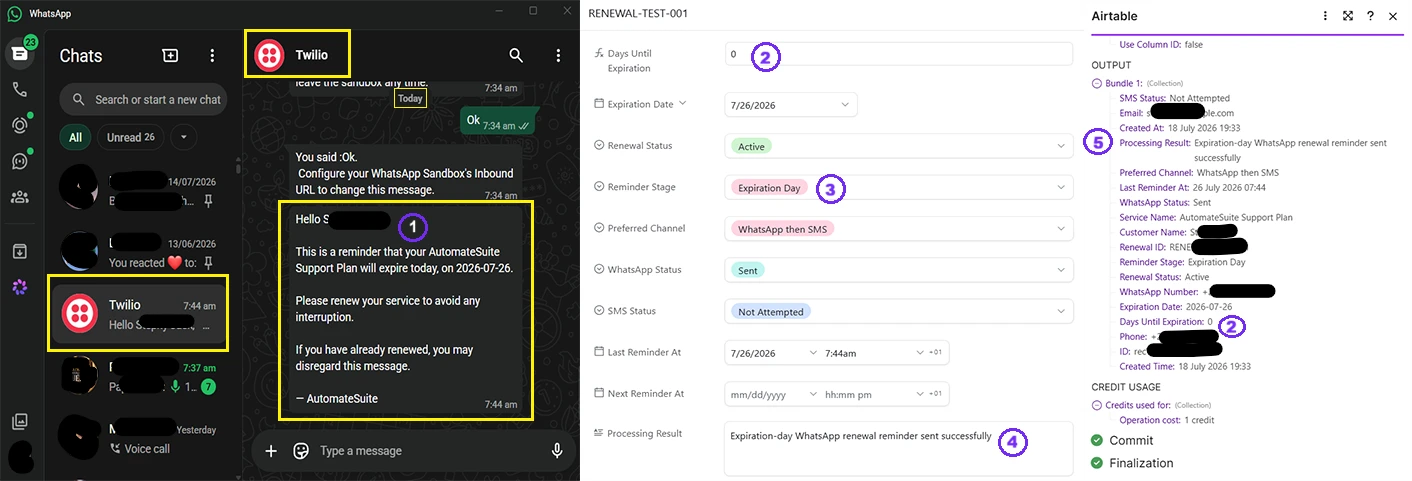

05
Expiration-Day Reminder
The Expiration-Day Route Sends the Final Reminder
When the calculated remaining time reaches zero, the workflow selects the expiration-day message and records the final reminder stage.
-
1
Expiration-day message delivered
The customer receives the final renewal reminder through the configured WhatsApp channel.
-
2
Expiration date reached
The Airtable record shows the renewal has reached its expiration date, which triggers the final reminder route.
-
3
Reminder stage set to Expiration Day
The renewal record is updated to the “Expiration Day” stage after the final reminder is processed.
-
4
Delivery and record status updated
Airtable confirms the WhatsApp action was sent and stores the successful processing result.
-
5
Scenario output confirms the expiration-day route
The Make execution output confirms the workflow selected the expiration-day route and completed the related record update.

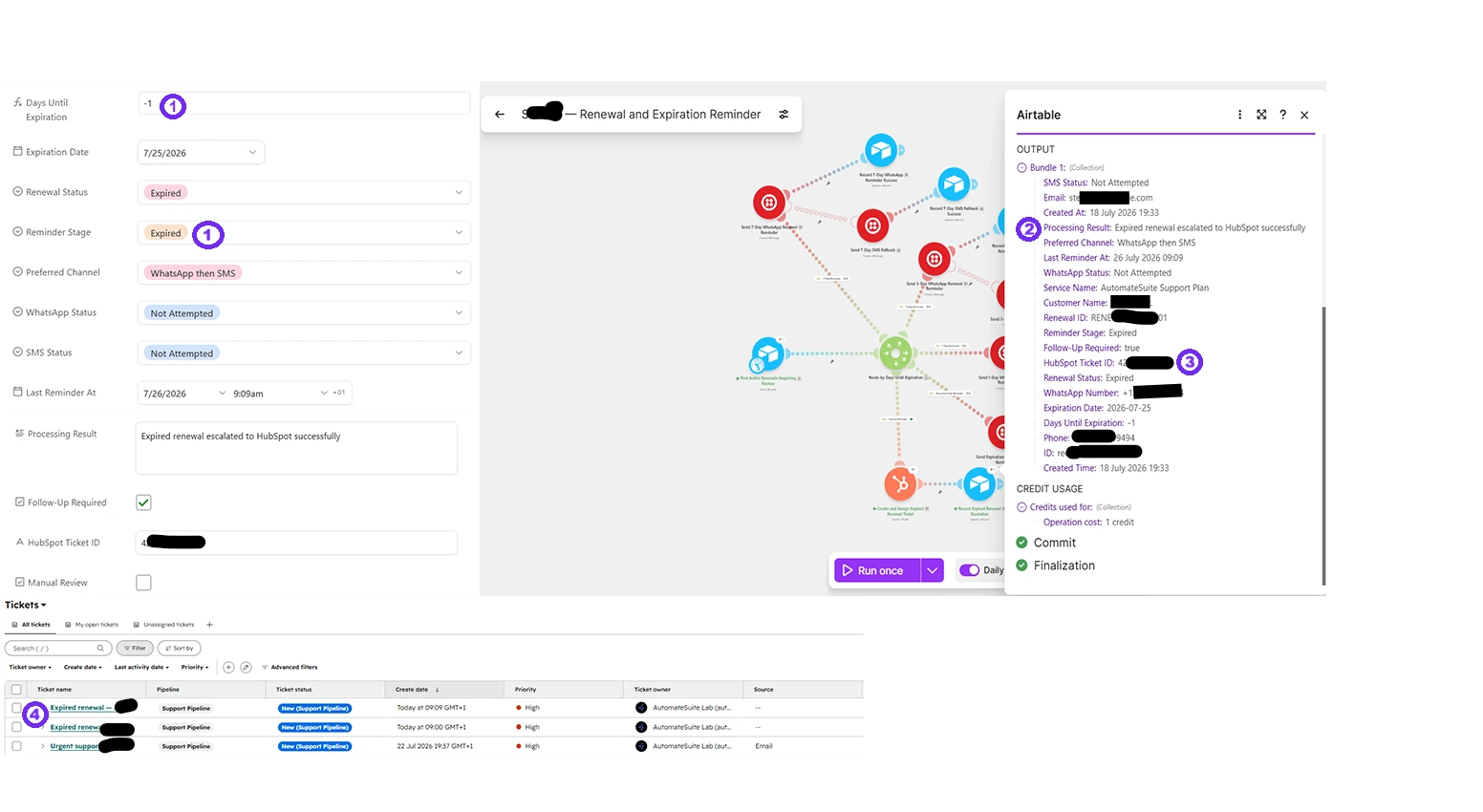

06
Incident Escalation
The Expired Renewal Is Escalated to HubSpot
When the configured incident conditions remain unresolved, the workflow creates a HubSpot ticket so the renewal case can be investigated and followed.
-
1
Expired renewal state
The source record confirms that the renewal has passed its deadline and entered the expired stage.
-
2
Escalation result
The processing result confirms that the expired renewal was escalated successfully to HubSpot.
-
3
HubSpot ticket reference
A HubSpot ticket ID is stored so the escalated case can be tracked in the CRM.
-
4
Ticket created in HubSpot
HubSpot shows the renewal issue as a newly created ticket ready for follow-up.

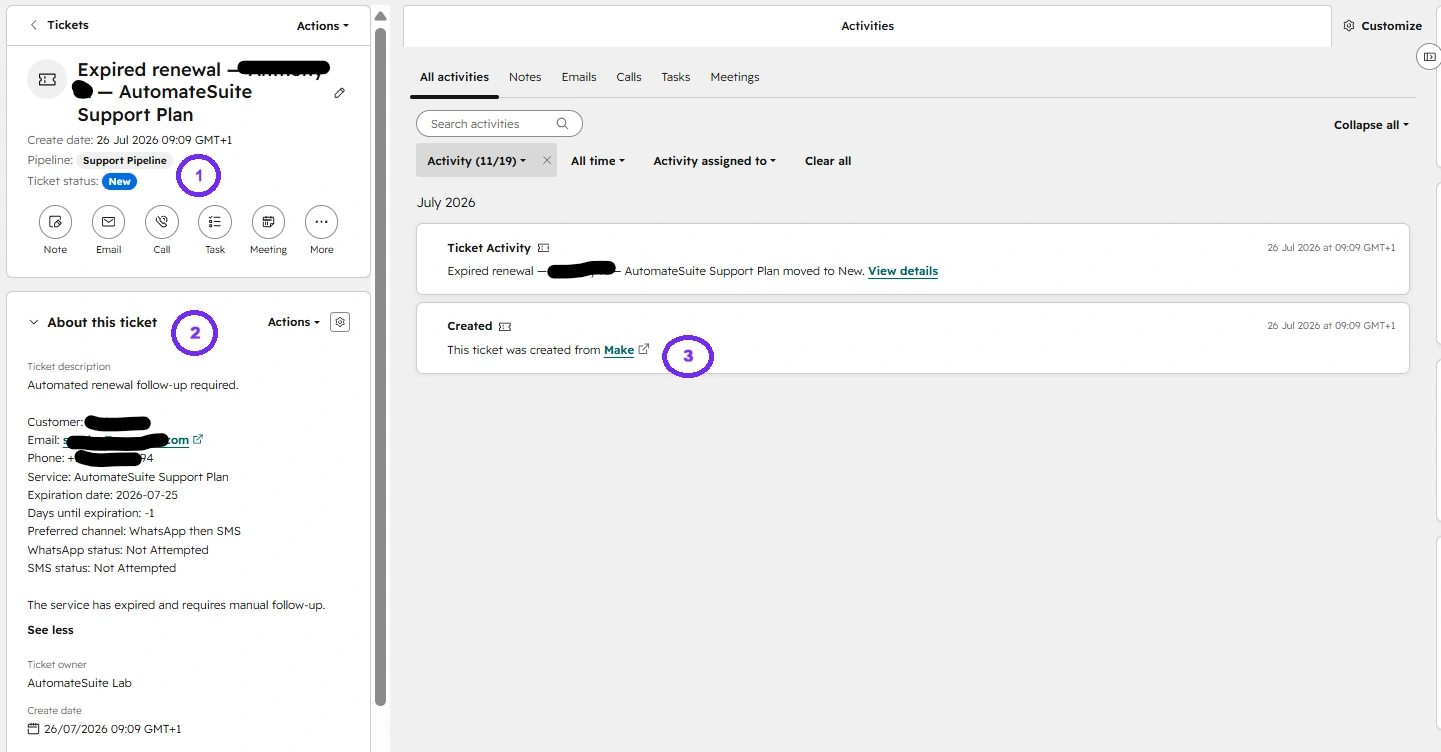

Connected-System Confirmation
The Expired Renewal Becomes a HubSpot Ticket
HubSpot confirms that the expired renewal was converted into a trackable follow-up ticket containing the customer, service and expiration context.
-
1
Expired-renewal ticket
The unresolved expired renewal becomes a separate CRM ticket.
-
2
Customer and service context
The ticket includes the customer, service, contact and expiration information required for follow-up.
-
3
Created through Make
HubSpot identifies the automation integration as the source of the ticket.
Validated Test Results
What the Simulation Demonstrated
The following behaviours were observed during the controlled AutomateSuite test.
Renewal Dates Evaluated
The workflow selected records according to their calculated expiration stage.
Staged Reminders Sent
The tested seven-day, three-day, one-day and expiration-day routes used their configured WhatsApp reminders.
Fallback Route Configured
The workflow architecture includes SMS fallback branches for configured delivery conditions.
Incident Escalation Created
The configured unresolved case produced a trackable HubSpot ticket.
What This Case Study Does Not Claim
The simulation does not claim guaranteed message delivery, customer renewal conversion, production-scale volume, customer return on investment or identical results for every implementation.
Operational Benefits
A More Structured Renewal Communication Process
Consistent Reminder Timing
Renewal stages are evaluated according to configured date conditions.
Separate Delivery Routes
Advance, expiration-day and fallback actions remain distinct.
Fallback Prepared
A secondary channel can support the process when the primary condition fails.
Centralized Processing History
Airtable preserves reminder, channel and escalation results.
Possible Production Configuration
Adapt the Workflow to Your Renewal Process and Channels
A production implementation can be adjusted according to the client’s renewal stages, customer database, approved messaging providers, fallback policies and escalation requirements.
- Custom reminder intervals and message templates
- Alternative customer databases and CRM integrations
- Approved WhatsApp Business sender configuration
- Custom SMS fallback and retry rules
- Incident ownership, notification and escalation policies
Validated Technology Stack
Tools Used in This Simulation
The demonstrated workflow was built and tested with the following connected platforms.
Airtable
Stores customer renewal dates, reminder stages, channel status and processing results.
Make
Orchestrates date evaluation, routing, messaging, fallback and escalation.
Twilio
Provides the tested WhatsApp Sandbox connection and the SMS connection used by the configured fallback architecture.
Receives the staged renewal reminders during the controlled test.
HubSpot
Receives unresolved reminder incidents as trackable tickets.
The production stack can be adapted according to the client’s approved messaging providers, customer systems and technical requirements.
Platform disclosure: this published simulation was built and tested in Make. n8n and Zapier were not tested as part of this case study and remain scope-dependent production options.
Frequently Asked Questions
Renewal Reminder Automation FAQ
Yes. Reminder intervals, eligibility conditions and message templates can be adapted to the client’s renewal policy.
No. The controlled test used Twilio’s WhatsApp Sandbox. A production deployment would require an approved sender, templates and provider configuration.
The fallback branch runs only when its configured delivery or connection condition is satisfied. Production rules can define retries, delays and escalation thresholds.
A ticket is created when the configured incident conditions remain unresolved after the relevant reminder or fallback actions.
Potentially yes. A production configuration may use other compatible databases, CRM systems or messaging providers depending on their integrations, APIs and approval requirements.
Build a Workflow Around Your Renewal Process
Need a More Reliable Way to Manage Renewal Reminders?
Tell AutomateSuite where your renewal dates are stored, which reminder stages you need and how failed or unresolved messages should be handled.
